Aluminium Jib Crane

Aluminium jib crane suav tias yog ib qho kev sib hloov cantilever-style lifting unit haum nrog extruded aluminium alloy rail, tsis yog cov pa steel I-beam los yog lub thawv girder.Lub extruded-aluminium profile txo qis trolley dov kev sib txhuam thiab txiav boom tuag-qhov hnyav. Rau cov chaw ua haujlwm uas xav tau kev nqa ib zaug ib zaug nrog kev ceev ceev, qhov tseeb qhov chaw thiab tsawg tus neeg ua haujlwm qaug zog, cov neeg ua haujlwm xaiv cov qauv crane no.Our LV-HNN aluminium alloy rail slewing jib tuaj nyob rau hauv kem-mounted layout. Nws muaj kev nyab xeeb ua hauj lwm load (SWL) spans 125 kg-2,000 kg thiab txhawb lub siab tshaj plaws 270℃slewing lub kaum sab xis.

Tsau monorail systems-tsuas yog tuav cov loads raws ib txoj kev ncaj. Nws jib boom tig ib ncig ntawm sab hauv nruab nrab kom xa cov voj voog-puab kev pab cuam. Nruab nrog anodized rail nto thiab hloov pauv qhov kawg-nres mechanism, LV-HNN ua haujlwm rau cov haujlwm ua haujlwm. Cov xwm txheej ua haujlwm no muaj nuj nqis load-positioning precision, lub sijhawm luv luv nrog rau kev nqa nqa yooj yim.

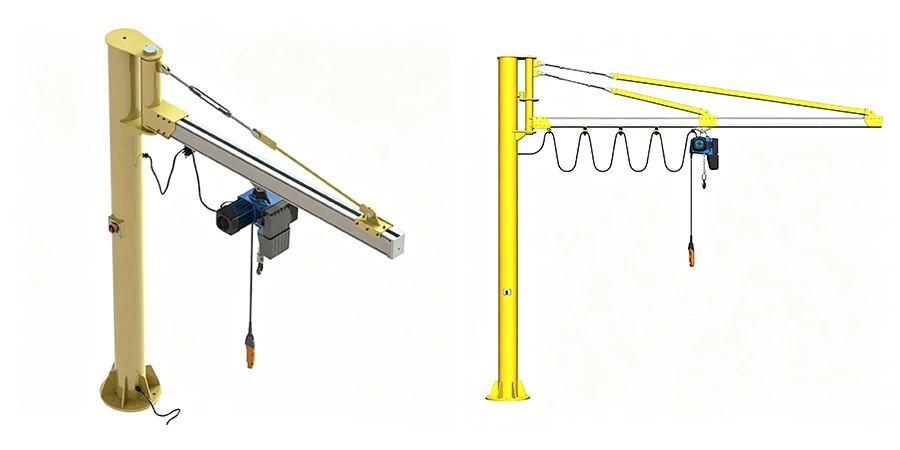

Lub crane muaj peb pawg ua haujlwm: kem (los yog phab ntsa bracket) uas nqa cov qauv thauj khoom, tus txiv neej aluminium jib caj npab uas txhais lub vojvoog ua haujlwm, thiab aluminium rail nrog trolley uas nqa lub hoist raws caj npab. Vim hais tias txoj kev tsheb ciav hlau yog ib qho hollow anodized aluminium profile es tsis yog cov hlau dov, cov trolley log ntsib qhov tsis sib xws tsis zoo. Qhov no txo ​​qis kev thawb thiab rub quab yuam tus neeg teb xov tooj siv thaum lub sij hawm tuav txoj hauj lwm thiab ua kom lub sij hawm xav tau los tso ib qho kev ua siab ntev.

Lub caj npab rotates ntawm ib tug slewing bearing ntawm lub taub hau. Qhov sib txawv kawg - nres cia tus installer teeb lub qhov rais hloov tau siv tau kom haum rau qhov teeb tsa ntawm lub chaw ua haujlwm, yog li lub caj npab txoj kev viav vias tuaj yeem raug txwv kom tsis txhob muaj cov khoom nyob ib sab, phab ntsa, lossis txoj kev taug kev es tsis yog ib txwm ua rau tag nrho cov kev txwv.





Parameter	Tus nqi
Qauv	LV-HNN
Hom qauv	Aluminium alloy rail slewing jib (kem -mounted, guyed caj npab)
Safe ua hauj lwm load (SWL)	125 kg / 250 kg / 500 kg / 1,000 kg / 2,000 kg
Kev nthuav qhia (ua haujlwm vojvoog)	2 m - 10 m
Slewing lub kaum sab xis	Mus txog 270 deg (configuration CNN) los yog 180 deg (configuration WNN)
Rail khoom	Aluminium alloy, anodized nto kho
Xaus - hom nres	Variable, teb- kho txoj kev taug kev
Tau tshaj hoisting li	Hluav taws xob saw hoist, ntse nqa khoom, pneumatic tshuav nyiaj li cas hoist, lub tshuab nqus tsev nqa khoom
Kev ua haujlwm ib puag ncig	Plua plav-dawb, tawg- pov thawj ntsuas

Kev muaj peev xwm thiab kev nthuav tawm muaj qhov cuam tshuam tsis sib xws: luv caj npab ntev tso cai rau qhov kawg ntawm SWL ntau dua, thaum qhov kev nthuav dav ntev dua sib haum mus rau qis dua - theem peev xwm. Paub meej tias qhov tseeb load- vojvoog ua ke tiv thaiv daim ntawv qhia kev thauj khoom tam sim no ua ntej xaj.





• Tsawg-kev sib txhuam aluminium rail. Lub hollow anodized aluminium profile nqa tsawg trolley loj tshaj qhov sib npaug steel khiav, txiav dov kev sib txhuam thiab phau ntawv quab yuam yuav tsum tau txav mus los ntawm caj npab.
• Ceev ceev, raug qhov chaw. Txo kev sib txhuam thiab ib tug rigid guyed - caj npab geometry txhais mus rau hauv ceev ceev mus ncig teb chaws thiab nruj nrees nres qhov tseeb ntawm lub hom phiaj txoj hauj lwm, uas shortens tuav cycles ntawm repetitive hauj lwm.
• Ergonomic lub zog ua haujlwm. Kev tiv thaiv qis dua ntawm lub trolley thiab pivot bearing txo qhov kev siv zog ntawm lub cev xav tau los ntawm tus neeg teb xov tooj hla kev hloov pauv tag nrho, uas txhawb nqa kev tuav tau raug thiab txo qhov qaug zog - cuam tshuam txog kev qeeb qeeb.
• Dav slewing ntau yam. Lub kaum sab xis tig mus txog 270℃txuas lub crane lub voj voog ua haujlwm zoo tshaj qhov yooj yim ncaj- kab monorail, tso cai rau ib kem los pab ntau qhov chaw nyob ib sab thiab tshem tawm cov ntsiab lus.
• Kho txoj kev taug kev. Qhov sib txawv kawg - nres tso cai rau lub viav vias ua haujlwm tau zoo nyob rau ntawm qhov chaw, yog li ntawm caj npab txoj kev txav tuaj yeem sib phim rau qhov tseeb hneev taw ntawm cov cav tov, lub rooj zaum, thiab cov kev taug kev nyob ib ncig ntawm qhov chaw teeb tsa.
• Anodized rail tiav. Txoj kev tsheb ciav hlau yog anodized rau kev hnav tsis kam thiab qhov ruaj khov, txhawb nqa kev txav mus los zoo ib yam dhau ntawm kev ua haujlwm txuas ntxiv yam tsis muaj qhov degradation.
• Plua plav-dawb, tawg- pov thawj tsim. Aluminium alloy qauv thiab rail tsim tsis muaj ferrous sparking nyob rau hauv ib txwm mechanical kev sib cuag, uas yog vim li cas hom crane no haum rau ib puag ncig uas muaj plua plav lossis vapor ignition yuav tsum tau tswj los ntawm cov khoom tsim es tsis yog los ntawm cov txheej txheem ib leeg.
• Cov khoom siv ruaj khov. Trolley log, bearings, thiab pivot hardware tau teev tseg rau ncua kev pab cuam nyob rau hauv tas li muaj lub luag hauj lwm.

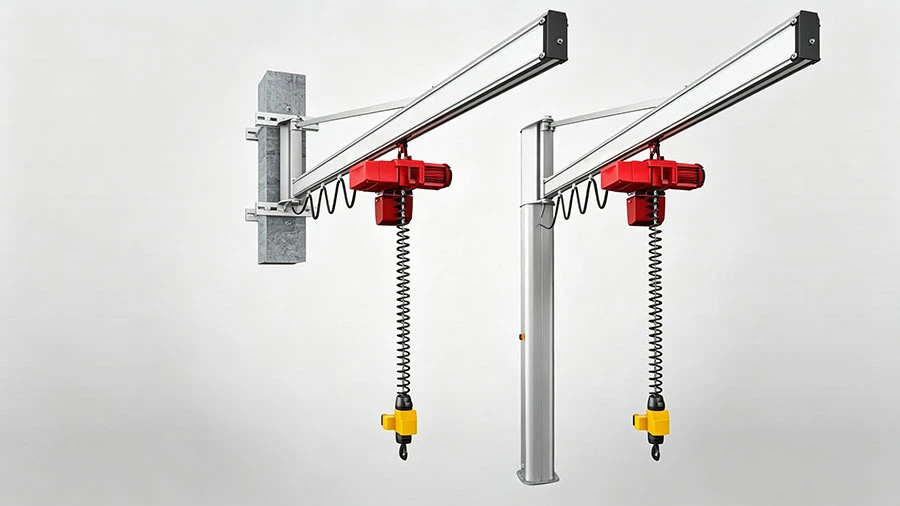

Lub LV-HNN rail thiab trolley yog tsim los ua cov cab kuj, tsis yog ib qho chaw ruaj khov, yog li lub crane tuaj yeem ua ke nrog cov cuab yeej hoisting uas phim rau daim ntawv thov:

• Fais saw hoist - rau tus qauv siv lub zog nqa ntawm qhov nrawm nrawm
• Cov cuab yeej nqa nqa ntse - rau qhov sib txawv - nrawm lossis thauj khoom - hnov ​​​​txog lifting tswj
• Pneumatic tshuav nyiaj li cas hoist - rau quab yuam- pab tuav tuav hauv nruam- kev sib dhos ua haujlwm
• Lub tshuab nqus tsev lifting khoom - rau tuav ca, kaw, los yog tsis yog -hlau nto yam tsis muaj tshuab clamping

Qhov kev hloov pauv no tso cai rau tib lub crane qauv kom rov ua dua -nruab nrab raws li qhov yuav tsum tau hloov pauv, yam tsis tau hloov cov tsheb ciav hlau lossis kab.

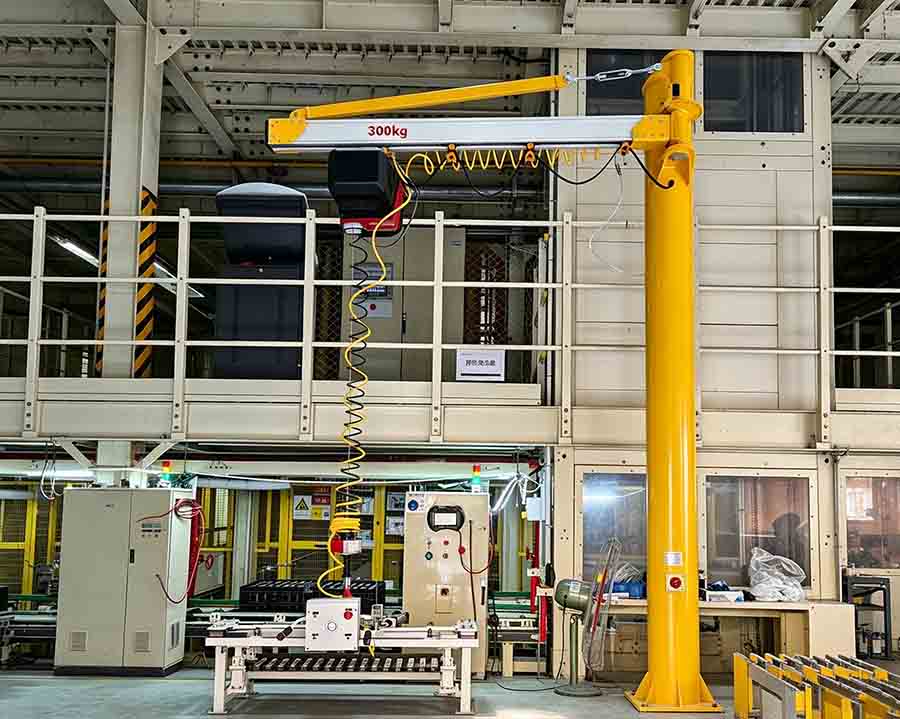

Vim hais tias cov qauv yog lub teeb yuag, qis- kev sib txhuam, thiab ntsuas rau cov plua plav- dawb thiab tawg- pov thawj kev pabcuam, aluminium alloy rail slewing jib feem ntau yog siv rau ntawm:

• Kev sib dhos thiab sub- cov chaw ua haujlwm sib dhos uas yuav tsum tau rov ua dua cov ntsiab lus-rau- taw tes nqa
• Tshuab- lub cuab tam loading thiab unloading cov ntsiab lus uas lub voj voog lub sij hawm thiab qhov chaw qhov tseeb cuam tshuam txog kev xa khoom
• Ntim thiab palletizing chaw tuav cov khoom txog li 2,000 kg
• Cov chaw tsim khoom uas muaj plua plav lossis tawg - kev faib cov kev pheej hmoo uas tsis yog - cov khoom siv hluav taws xob xav tau
• Kev cob qhia uas xav tau kev pab them nqi ntawm thaj chaw ua haujlwm ncig los ntawm ib qho chaw ruaj khov, tsis yog kev khiav ncaj nraim







Peb qhov sib txawv txhais tau hais tias LV-HNN kev teeb tsa, thiab lawv yuav tsum tau lees paub ua ke es tsis nyob hauv kev sib cais:

1. Thauj khoom -Txheeb xyuas qhov SWL tiag tiag uas yuav tsum tau ua ntawm qhov chaw ua haujlwm, suav nrog qhov hnyav ntawm cov khoom nqa nqa (nqus, lub tshuab nqus tsev, lossis lub tshuab nqus tsev).
2. Kev nthuav qhia -Ntsuas lub vojvoog ua haujlwm uas xav tau los npog cov khoom thauj thiab tshem tawm cov ntsiab lus. Kev nthuav qhia thiab kev muaj peev xwm txuas nrog; nce ib feem ntau yuav tsum tau txo lwm tus nyob rau hauv daim ntawv pov thawj load.
3. Slewing kaum -Txiav txim siab seb lub chaw ua haujlwm puas yuav tsum muaj 270℃cheb lossis txwv 180℃ntau yam, thiab teeb tsa qhov sib txawv kawg - nres raws li thaum lub sijhawm teeb tsa.

Xaiv hom hoist ua raws li tib lub ntsiab lus: nruam- lub luag haujlwm lub voj voog ua haujlwm nyiam lub tshuab hluav taws xob saw hoist lossis cov cuab yeej ntse nqa, thaum phau ntawv- pab cov ntawv thov nrog cov neeg siv ntau zaus repositioning feem ntau zoo dua los ntawm pneumatic tshuav hoist.





Dab tsi yog qhov siab tshaj plaws load peev ntawm aluminium jib crane?

Lub LV-HNN aluminium alloy rail slewing jib yog ntsuas txog li 2,000 kg SWL, muaj nyob thoob tsib lub peev xwm (125 kg, 250 kg, 500 kg, 1,000 kg, thiab 2,000 kg). Lub peev xwm siv tau ntau tshaj plaws ntawm txhua qhov chaw nyob ntawm qhov chaw nthuav dav rau qhov kev teeb tsa.

Qhov kev nthuav dav thiab kev sib hloov lub kaum sab xis no puas txhawb nqa crane?

Qhov kev ncua deb ntawm 2 m mus rau 10 m. Slewing lub kaum sab xis muaj nyob rau hauv ob qhov kev teeb tsa: mus txog 270℃(CNN) lossis 180℃(WNN), nrog rau txoj kev viav vias zoo ntxiv tuaj yeem kho tau ntawm qhov chaw los ntawm qhov sib txawv kawg - nres.

Vim li cas thiaj siv lub tsheb ciav hlau tsis siv lub tsheb ciav hlau rau jib crane?

Ib qho txhuas rail txo trolley dov kev sib txhuam thiab cov qauv tuag hnyav piv nrog cov hlau seem ntawm cov khoom zoo sib xws. Qhov no txo ​​qis kev khiav hauj lwm quab yuam uas yuav tsum tau txav mus los ntawm tus kheej thiab txhawb nqa sai dua, rov ua haujlwm dua thaum lub sijhawm ua haujlwm.

Qhov no jib crane puas haum rau tawg- pov thawj lossis plua plav- thaj chaw dawb?

Yog lawm. Aluminium alloy qauv thiab kev tsheb nqaj hlau yog tsim los rau cov plua plav- dawb thiab tawg- cov ntaub ntawv pov thawj, ua rau cov crane tsim nyog rau cov chaw tsim khoom uas tsis yog - cov khoom siv hluav taws xob tuav cov khoom siv yog qhov tsim nyog.

Dab tsi hoists tuaj yeem ntsia tau rau ntawm aluminium jib crane?

Lub tsheb ciav hlau thiab lub tsheb thauj khoom lees txais lub tshuab hluav taws xob saw hoist, lub tshuab nqa ntse, lub tshuab pneumatic sib npaug hoist, lossis cov khoom siv nqus tsev nqus, tso cai rau lub crane kom haum rau lub zog, quab yuam- pab, lossis tsis yog - tiv tauj cov kev xav tau.

Lub viav vias ntau puas tuaj yeem txwv tsawg dua qhov siab tshaj plaws ntsuas lub kaum ntse ntse?

Yog lawm. Lub crane siv qhov sib txawv ntawm qhov kawg - nres, yog li tus neeg tsim khoom tuaj yeem teeb tsa txoj kev ua haujlwm viav vias kom tsawg dua li ntawm 270℃lossis 180℃ntsuas kom phim cov kev tshem tawm ntawm qhov chaw teeb tsa.

Lub peev xwm thauj khoom hloov pauv li cas nrog kev nthuav tawm?

Rau no series ntawm cranes, rated peev xwm sawv ntsug nyob rau hauv inverse proportions rau nthuav. Shorter ua hauj lwm-radius chaw txhawb lub Upper-tier zoo ua hauj lwm-load tus nqi; Kev nthuav tawm ntev dua yuav txo qis qhov siab tshaj qhov tso cai. Muab ob npaug rau-xyuas qhov sib npaug load-radius tsis nyob ntawm daim ntawv teev npe ua ntej tso koj daim ntawv xaj.
