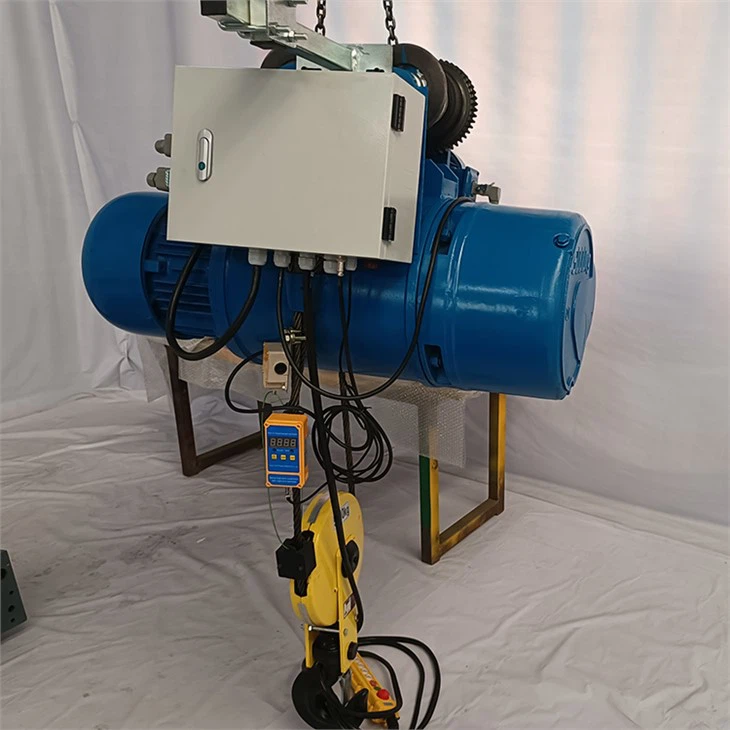

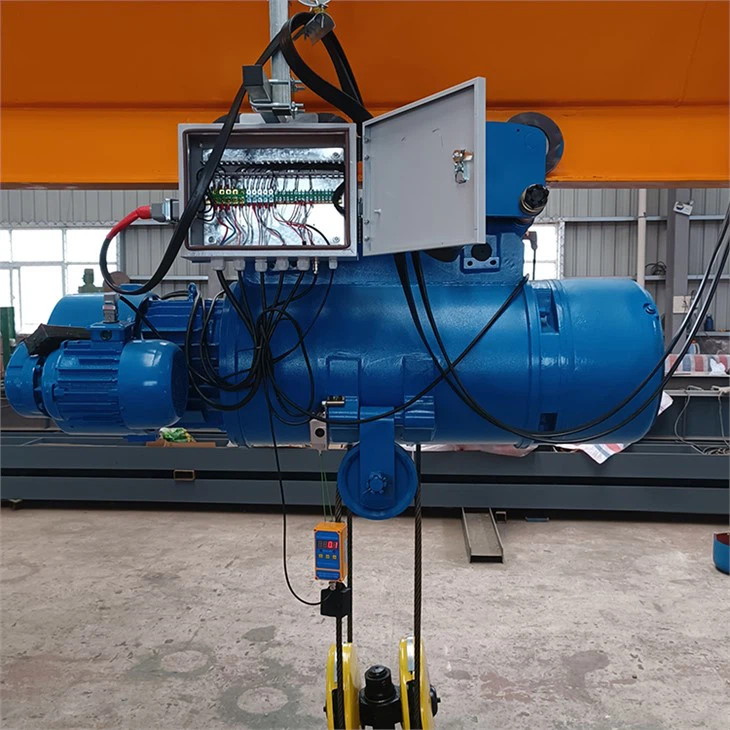

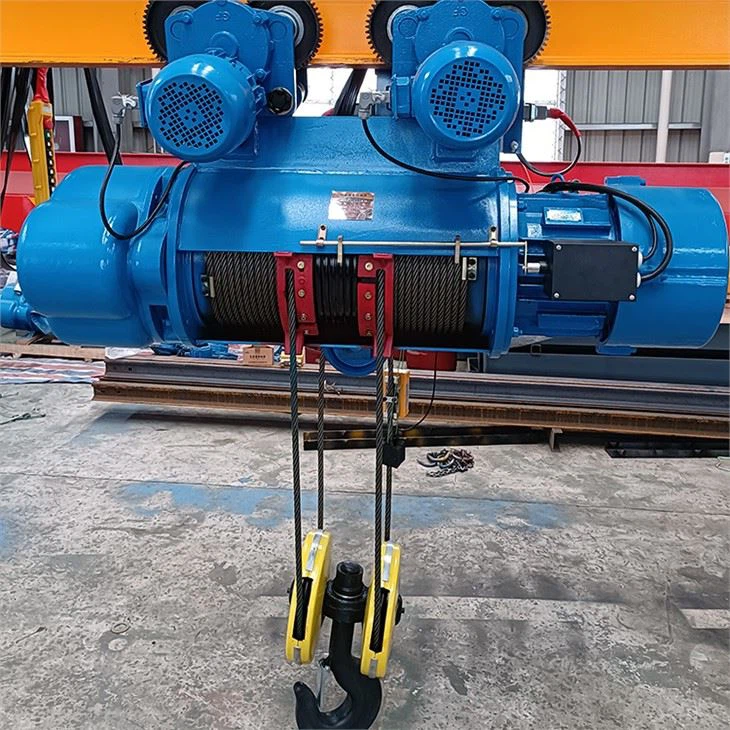

Hlau hlua Hoist
CD thiab MD hom hlau hlua hluav taws xob hoists yog lub teeb thiab cov khoom nqa me me, uas tuaj yeem ntsia tau rau ntawm ib leeg girder cranes, choj cranes, gantry cranes, jib cranes, cantilever cranes, thiab lwm yam.
Hlau hlua Hoist
KINO CRANES tuaj yeem tsim tau 1-50 tons ntawm hlau hlua hluav taws xob hoists.
CD thiab MD hom hlau hlua hluav taws xob hoists yog lub teeb thiab cov khoom nqa me me, uas tuaj yeem ntsia tau rau ntawm ib leeg girder cranes, choj cranes, gantry cranes, jib cranes, cantilever cranes, thiab lwm yam, thiab tuaj yeem siv los ua winches. Siv dav hauv factories, mines, ports, warehouses, cargo storage area and shops. CD muaj ib tug ceev, MD muaj ob ceev.
Nta
1) Lub npe nrov lub cev muaj zog, lub neej ntev
2) Cov khoom siv ruaj khov
3) Kev xa khoom sai
4) Kev pabcuam zoo tom qab muag.
Khoom Specification
|
CD/MD Electric Hoist |
|||||||
|
Lifting qhov hnyav (t) |
1T |
2T |
3T |
5T |
10T |
||
|
Lifting qhov siab (m) |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
||
|
Lifting ceev (m / min) |
8 8/0.8 |
8 8/0.8 |
8 8/0.8 |
8 8/0.8 |
7 7/0.7 |
||
|
Kev khiav ceev (m / min) |
20 |
20 |
20 |
20 |
20 |
||
|
Bonding tooj (n/hr) |
120 |
120 |
120 |
120 |
120 |
||
|
Hlau hlua |
Txoj kab uas hla |
7.4m/m |
11 hli |
13 hli |
15 hli |
15 hli |
|
|
Qauv |
D-6*37 ntxiv 1 |
D-6*37 ntxiv 1 |
D-6*37 ntxiv 1 |
D-6*37 ntxiv 1 |
D-6*37 ntxiv 1 |
||
|
I-beam qauv |
16-28b |
20a-32c |
20a-32c |
25a-45c |
32a-63c |
||
|
Lub cev muaj zog |
Hoist |
Hwj chim |
1.5 1.5/0.2 |
3 3/0.4 |
4.5 4.5/0.4 |
7.5 7.5/0.8 |
13 13/2.0 |
|
Ceev |
1380 |
1380 |
1380 |
1400 |
1400 |
||
|
Kev ua haujlwm |
Hwj chim |
0.2 |
0.4 |
0.4 |
0.8 |
0.8 |
|
|
Ceev |
1380 |
1380 |
1380 |
1380 |
1380 |
||
|
Hom kev ua haujlwm |
M3 |
M3 |
M3 |
M3 |
M3 |
||
|
Lub koom haum qib |
25 feem pua |
25 feem pua |
25 feem pua |
25 feem pua |
25 feem pua |
||
Daim ntawv thov
Qhov no crane yog tsim rau kev cob qhia, zoo yards thiab warehouses ntawm lub department ntawm chaw nres tsheb, chaw nres nkoj, industrial thiab mining enterprises, nqa, thauj, loading thiab unloading tag nrho cov hom ntawm cov ntaub ntawv nyob rau hauv ib tug ncua ncua sij hawm.
Yuav Ua Li Cas Tau Txais Ob Chav Beam Overhead Crane Solution?
Lifting peev (tuj): __ ?( Lub peev xwm ntsuas)
Lifting qhov siab (m): __ ? (Qhov siab ntawm qhov nruab nrab ntawm qhov chaw rau hauv pem teb)
Lifting ceev (m/min): __ ? (Ib leeg, dual, sib txawv)
Industrial voltage: __ ? (xws li: 380V, 50Hz, 3ph)
Vim li cas thiaj xaiv Kinocranes
Kinocranes yog cov chaw tsim khoom lag luam crane. Peb koom ua ke crane kev tshawb fawb thiab kev tsim kho, tsim khoom, muag, kev teeb tsa thiab kev pabcuam.
Peb muaj ntau tshaj 1200 tus neeg ua haujlwm, cov uas muaj ntau tshaj 180 engineers thiab cov kws tshaj lij. Lub Hoobkas cheeb tsam yog kwv yees li 280 daim av. Cov peev txheej sau npe yog 108.80 lab RMB thiab tag nrho peev 220 lab RMB. 210-ntxiv rau cov txheej txheem tsim khoom siab heev thiab cov cuab yeej kuaj xyuas kom peb ua tau cov khoom zoo.
Peb tuaj yeem ua tau raws li cov neeg xav tau tshwj xeeb, piv txwv li, nws yog avaliable siv lub cev muaj zog, reducer, bearing thiab lwm yam hom los ntawm cov neeg siv khoom.
