Steel Scraper Lifting Magnet
Steel Scraper Lifting Magnet
Lub Lifting Magnet yog ib yam khoom siv hluav taws xob, uas kho cov txheej txheem ua haujlwm los ntawm kev nqus lub zog tsim los ntawm lub cev chuck tom qab electromagnetic coil yog energized. Lub tshuab electromagnet yog tsim los ntawm ntau qhov chaw xws li hlau core, coil, vaj huam sib luag thiab bracket. Ntawm lawv, cov electromagnet muaj xws li coil thiab hlau core yog lub ntsiab ntawm lub lifting electromagnet.
Electromagnets siv nyob rau hauv excavators los yog cranes rau sorting seem hlau, los yog excavator hlau nplaum, los yog seem hlau nplaum, seem tuav hlau nplaum, scrapyard hlau nplaum, junkyard hlau nplaum.

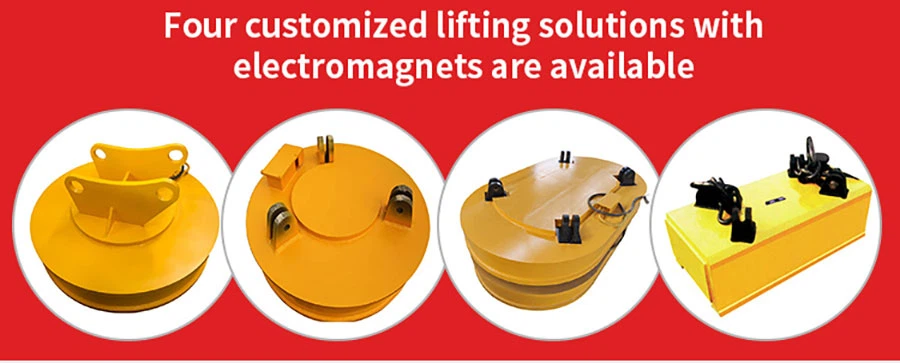

Raws li cov duab, nws tuaj yeem muab faib ua cov duab plaub thiab ncig lifting hlau nplaum; kuj tuaj yeem muab faib ua cov hlau nplaum zoo tib yam thiab muaj zog nqa hlau nplaum.
Kino tuaj yeem hloov kho electromagnet raws li cov ntaub ntawv thiab cov xwm txheej ua haujlwm.
Steel Scraper Lifting MagnetFeature
- Tag nrho cov teeb: Electromagnet chuck, rectifier, cable nruas jigger, cable connector, wireless chaw taws teeb tswj.
- Ua kom tiav cov qauv: siv cov qauv kaw tag nrho, cov ntaub ntawv muaj av noo siab.
- Kev nqus tau zoo, kev siv hluav taws xob tsawg: tsim tau zoo los ntawm lub khoos phis tawj, cov qauv tsim raws caij nyoog, lub teeb yuag, nqus tau zoo, siv lub zog tsawg.
- Lub neej ua haujlwm ntev: hlau nplaum zoo siab coil los ntawm kev ua haujlwm tshwj xeeb, txhim kho cov khoom siv hluav taws xob thiab cov cuab yeej cuab tam. Kev ntsuas kub ntawm cov khoom rwb thaiv tsev mus txog qib C.
- Kev siv hluav taws xob: feem ntau siv qhov hluav taws xob tas li, tseem xaiv qhov kev tswj kom muaj zog (DC-290V / 220V) thiab lub zog tam sim no.Nws tuaj yeem txhim kho lub zog nqa, txuag hluav taws xob thiab txhim kho kev lag luam.
- Yooj yim rau nruab, khiav lag luam thiab tswj.
Steel Scraper Lifting MagnetQhov zoo
- Zoo zoo nrog tus nqi sib tw
- Cov qauv tsim nyog, kev ua haujlwm zoo
- Tswj lub load yooj yim thiab tso lub load raws nraim
- Yooj yim pib thiab nres
- Superior kev nyab xeeb thiab kev ntseeg siab
- Tsawg tuag hnyav qis koj tus nqi
- Ib qho yooj yim txij nkawm rau ib feem
Steel Scraper Lifting Magnet Specification
|
Qauv |
Txoj kab uas hla (mm) |
Tuag hnyav (kg) |
Lifting peev (ton) |
|
MW{0}}L/1 |
500 |
220 |
1.2 |
|
MW{0}}L/1 |
600 |
340 |
2 |
|
MW{0}}L/1 |
700 |
490 |
2.5 |
|
MW{0}}L/1 |
800 |
620 |
3 |
|
MW{0}}L/1 |
900 |
800 |
4.5 |
|
MW{0}}L/1 |
1100 |
1350 |
6.5 |
|
MW{0}}L/1 |
1200 |
1700 |
7.5 |
|
MW{0}}L/1 |
1300 |
2010 |
8.5 |
|
MW{0}}L/1 |
1500 |
2830 |
11 |
|
MW{0}}L/1 |
1650 |
3200 |
12.5 |
|
MW{0}}L/1 |
1800 |
4230 |
14.5 |
|
MW{0}}L/1 |
2100 |
7000 |
21 |
|
MW{0}}L/1 |
2400 |
9000 |
26 |
|
MW{0}}L/1 |
2600 |
10100 |
30 |
|
MW{0}}L/1 |
2800 |
12450 |
34 |
|
MW{0}}L/1 |
3000 |
14980 |
39 |
Steel Scraper Lifting Magnet Daim ntawv thov
Ua ntej, tag nrho cov loj steel mills nyob rau hauv lub teb chaws yuav tsum tau siv lifting hlau nplaum. Feem ntau ntawm cov hlau mills siv square lifting hlau nplaum thiab oval lifting hlau nplaum. Lub lifting hlau nplaum siv nyob rau hauv steel mills tag nrho cov muaj nuj nqi ntawm lub hwj chim tsis ua hauj lwm tiv thaiv.
Qhov thib ob, cov hlau nplaum lifting siv nyob rau hauv lub foundry yog tsuas yog ntxiv cov seem hlau rau lub qhov cub lub qhov ncauj, thiab ib co yog electromagnet uas yuav tsum tau kub kub kuj.
Thib peb, qhov chaw uas siv electromagnet feem ntau yog peb qhov chaw yuav khoom seem hlau, feem ntau yog siv cov khoom siv electromagnet.
Plaub, pab pawg demolition uas demolishes lub tsev yuav kuj siv electromagnet, feem ntau excavator hlau nplaum.
Thib tsib, electromagnetic chucks kuj tau siv los khaws cov khoom seem hlau hauv cov dej ntws los yog cov pas dej, thiab qhov no yog cov diving hom electromagnet.
